Mesh Structure

Current Structure

Polygon Mesh Implementation

Generally speaking, we build a linked structure to explicitly connect faces, edges, and vertices

○ Advantages: fast, efficient, can support arbitrary polygons

○ Disadvantages: Somewhat complex to implement, must maintain

pointers to the necessary neighboring components

---

Well-Formed Surfaces

• Want a mesh’s structure to be “clean” (manifold geometry)

• Components must intersect “properly”

○ Faces are disjoint, OR share either a vertex or the edge between two vertices

○ Each edge is incident to exactly two vertices

○ Each edge is incident to at most two faces, and at least one face

• Local topology must also be “proper”

○ The “neighborhood” of a vertex should permit stretching and bending, but not tearing

• Global topology should be connected, closed, and bounded

---

Simple Data Structures

• List of polygon faces

• List of edges

• Vertices and index-based faces

---

• Store a list of polygon faces, each containing a set of explicit vertex coordinates

• No explicit edges

• No explicit face adjacency

○ You might figure out what faces are adjacent by checking for pairs of shared vertices

List of Edges

• Store a list of vertex pairs, where each pair defines an edge

• Again, no explicit faces or adjacency

○ Two vertices at the same coordinates are discrete

Index-based faces

• Like we discussed previously, this is the data structure you used to render your geometry with vertex buffer objects

• As with the previous two data structures, there is no adjacency information

Constraint

We want a mesh data structure that helps us do the following

• ○ Easily add/remove/modify elements in 3D
• ○ Have a low access time when finding elements
  • ■ Usually linear time
  • ■ Avoid searching for things like neighbors
• ○ Have constant-size storage (i.e. no usage of std::vectors)
• ○ Implicitly prevent “bad” mesh structures

in addition to geometric data, let’s also store topological information like adjacency and connectivity

Half-Edge Structure

Naïve Adjacency

• Each element has a list of pointers to ALL adjacent elements

○ Queries depend on the local complexity of the mesh

○ Each element (face/edge/vertex) does not have a fixed size!

○ Slow to construct, tedious to maintain all the pointers during operations on the mesh

Structure

Composed of vertices, faces, and half-edges

half-edge

• Half-edges are directed edges that form a ring around a particular face

DO-WHILE to traversal edges

• A half-edge stores the following information:

○ The face to its left

○ The next half-edge in the ring

○ The symmetric half-edge on the face adjacent to this half-edge’s face

○ The vertex between this half-edge and the next half-edge

• If an edge lies at a boundary (i.e. it only touches one face), both half-edges are still needed

○ The outer half-edge just has a NULL face pointer

• Take note that the external boundary of this mesh is still linked in a ring

face

A face stores a single pointer to any one of the half-edges that loops around it

vertex

• A vertex stores a single pointer to an arbitrary half-edge that points to it

• Combined with the many pointers stored in a half-edge, we have a data structure that we can traverse starting from any arbitrary component!

Advantages

Fixed size of data structure elements

• Data:

○ Geometric information stored at vertices

○ Attribute information (e.g. color) stored in any relevant component

○ Topological information in half-edges only!

• Structure enforces “proper” topology (i.e. you can’t have Mobius strips)

• Time complexity

○ Linear for all local information (e.g. gathering lists of faces, edges, or vertices)

○ Independent of the overall mesh complexity

class Vertex {
    vec3 pos;
    HalfEdge * he;
}

class Face {
    vec3 color;
    HalfEdge * he;
}

class HalfEdge {
    HalfEdge *sym;
    HalfEdge *nxt;
}

class Mesh {
    std::vector<uPtr<Face>> faces;
    std::vector<uPtr<Vertex>> verts;
    std::vector<uPtr<HalfEdge>> edges;
}

Operations

Half Edge Traverse

around Face

Node *head = face.halfEdge, *curr = head;
do {
    tag(curr);
    curr = curr.next;
} while (curr != head);

around Vertex

Node *head = vertex.halfEdge, *curr = head;
do {
    tag(curr);
    curr = curr.next.sym;
} while (curr != head);

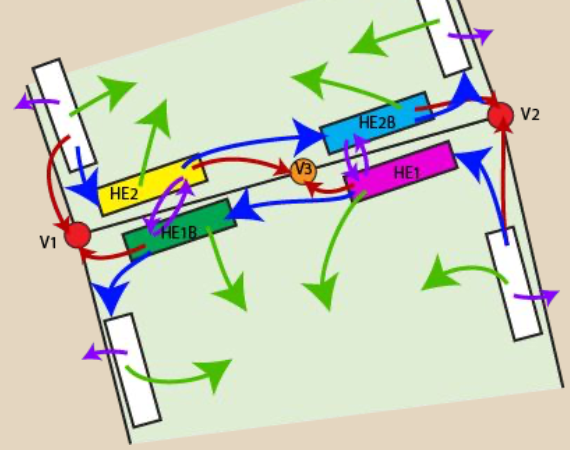

Split Edge/Insert Vertex

Insert a new vertex between V1 and V2

Steps:

1. Create the new vertex V3
2. Create the two new half-edges HE1B and HE2B needed to surround V3
   1. Make sure that HE1B points to V1 and that HE2B points to V2
   2. Also set the correct face pointers for HE1B and HE2B
3. Adjust the sym, next, and vert pointers of HE1, HE2, HE1B, and HE2B so the data structure flows as it did before

Triangulate

Catmull-Clark Subdivision

class Mesh {

}

class Face {

}

class HalfFace {
    HalfFace *sym;
    HalfFace *nxt;
}
